getScatter

A Scatter model is a data model that represents bi-variable data points defined as numerical x and y values. Suitable for rendering scatter plots and other similar charts.

Usage

const formula = await dataSource.getScatter({
    xAxisColumn: 'column_A',
    xAxisJoinOperation: 'count',
    yAxisColumn: 'column_B'
    yAxisOperationColumn: 'sum'
    // + base options...
});

Options

The getScatter model inherits all options from the base options, plus:

export interface ScatterRequestOptions extends BaseRequestOptions {
  xAxisColumn: string | string[];
  xAxisJoinOperation?: 'count' | 'avg' | 'min' | 'max' | 'sum';
  yAxisColumn: string | string[];
  yAxisJoinOperation?: 'count' | 'avg' | 'min' | 'max' | 'sum';
}

• xAxisColumn: the name of the column that will be used for getting the first variable (x axis) of each set. It also accepts a list of column names, that can be then aggregated using xAxisJoinOperation.

• xAxisJoinOperation (optional): the aggregation that will be performed to aggregate an array in xAxisColumn into a single one. Accepted values are:

  • count

  • avg

  • min

  • max

  • sum

• yAxisColumn: the name of the column that will be used for getting the second variable (y axis) of each set. It also accepts a list of column names, that can be then aggregated using yAxisJoinOperation.

• yAxisJoinOperation (optional): the aggregation that will be performed to aggregate an array in yAxisColumn into a single one. Accepted values are:

  • count

  • avg

  • min

  • max

  • sum

Response

A two-dimensional array containing a pair of numerical values for each set of variables.

The response will be limited to the first 500 rows for the given combination of sources and filters.

type CategoriesModelResponse = [number, number][];
/* example response
    [
      [1939, 34820],
      [2374, 59231],
      [3781, 61732],
      [3200, 57689],
      [4589, 98478],
      [4873, 89573],
      [4109, 84023]
    ];
*/

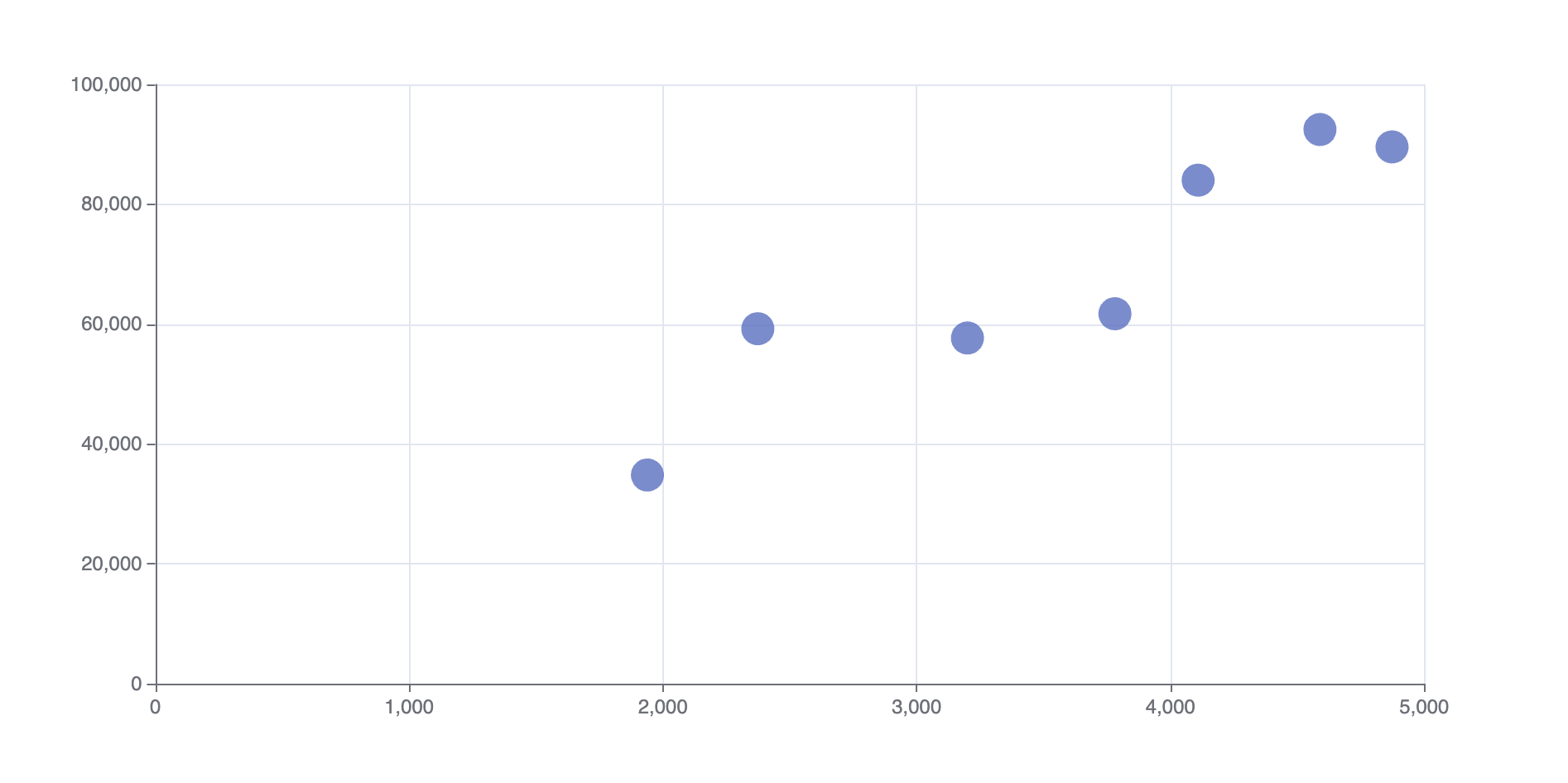

The response can be then freely mapped to any charting library to create data visualizations like a scatterplot chart.
