getFormula

A Formula model is a data model that represents a single numerical statistic, such as an average or a count. Suitable for headline or scorecard type of visualizations.

Usage

const formula = await data.widgetSource.getFormula({
    column: 'column_name',
    operation: 'count',
    // + operationExp for custom operations
    // + base options...
});

Options

The getFormula model inherits all options from the base options, plus:

export interface FormulaRequestOptions extends BaseRequestOptions {
  column: string | '*' | '';
  operation: 'count' | 'avg' | 'min' | 'max' | 'sum' | 'custom' ;
  operationExp?: string;
}

• column: the name of the column that you will run the statistical operation on. It also accepts the * value, that will

  • name of the column

  • * for total row count , used with count in operation

  • empty string, in combination with custom + operationExp

• operation: the statistical operation that will be performed on the column. Accepted values are:

  • count

  • avg

  • min

  • max

  • sum

  • custom: a custom SQL expression, specified by operationExp.

• operationExp (optional): when using operation: 'custom' you need to specify the exact SQL operation that you want to run on your column. For example: AVG(column_A) / AVG(column_B) * 100.

Response

A simple object containing the numerical value of the widget:

type FormulaResponse = {value: number};
/* example response
    {value: 1433230}
*/

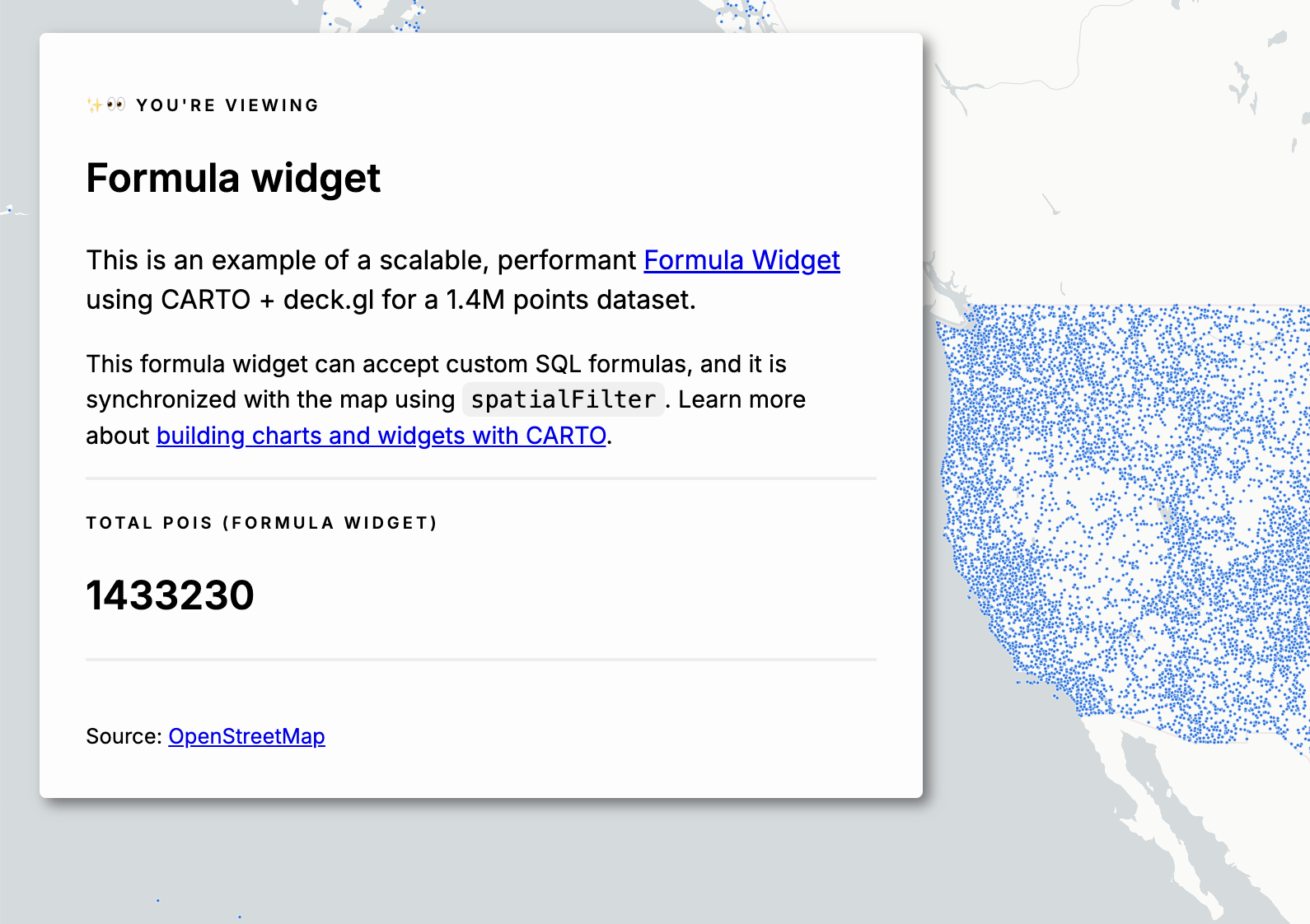

The response can be then mapped to any HTML element, such as a scorecard.
