Creating a tileset from your data
Last updated
Last updated
The creation of tilesets is moving to CARTO Workflows
This documentation only applies to organizations created before July 22nd, 2024. The assisted UI to create tilesets starting from Data Explorer covered in this documentation page will be removed for all existing organizations on January 18th, 2025.
Why this change?
Currently, the best way to create a tileset (both for custom data sources and Data Observatory datasets) is by using CARTO Workflows. Workflows provide a low-code visual UI to automate the creation of tilesets, with expanded abilities such as scheduling or flexible combinations with other components and analytical pipelines. We will continue supporting and improving the creation of tilesets in CARTO Workflows.
Get started with creating tilesets in CARTO Workflows
Tileset creation components in CARTO Workflows
Available for BigQuery, Snowflake, Redshift, and PostgreSQL connections
Creating tilesets is currently available from BigQuery, Snowflake, Redshift and PostgreSQL connections. Support for Databricks connections will come soon.
To create a tileset from your data, select an available connection and click on a specific table (database/project(s), schemas/datasets and tables) from the collapsible tree.
You can create a tileset by clicking on the Create tileset button at the top right of the screen. The platform detects automatically if the table is based on lines/polygons, points or spatial indexes and provides the appropriate workflow for each case, leveraging the best function of the tiler available in the Analytics Toolbox. Let’s see as an example for the case of a polygon-based table step by step:
Now from this interface will allow you to set the location and name of the output tileset in a directory where the user has write permissions. Once you have completed this configuration, click on Save here.
A new dialog will open so you can create the tileset from a form mode or from a sql mode. You are initially presented with a form mode to configure the tileset. You need to select the tileset zoom levels and choose the geometry column. You can also add a custom description to the tileset. Once you have completed this configuration, click on Continue.
The next screen will allow you to easily select the attributes of your table that will be included in the tileset. After completing this step, click on Continue :
The last screen will show you a summary of the configuration of the tileset for your confirmation. To confirm, click on Create :
At any point of the process you can switch to enable the SQL editor. This editor allows you to configure your tileset directly on the query that will be run to create it, therefore allowing you to edit all of the advanced options available. Once you have finished editing the SQL query, click on Create:

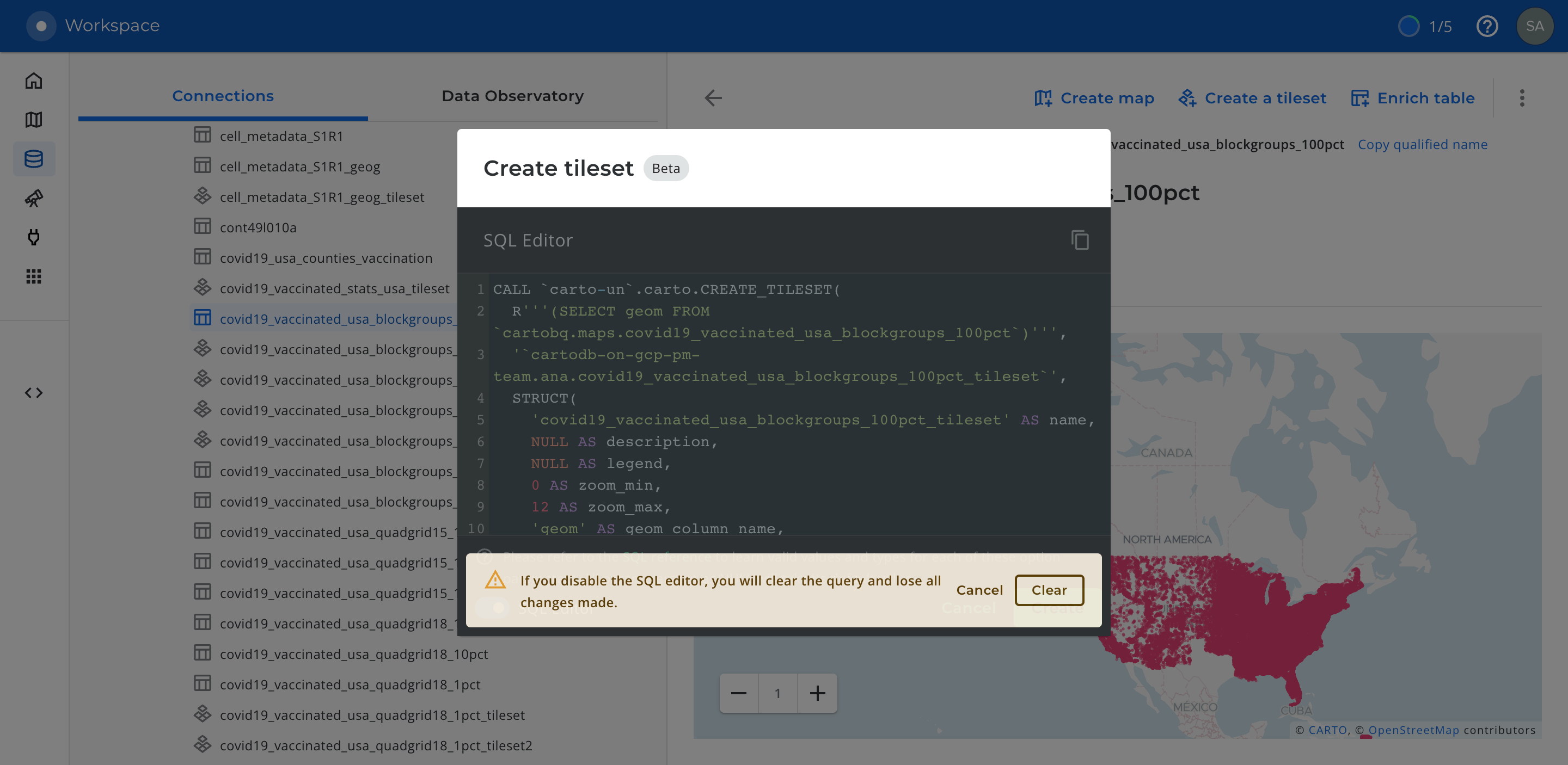

Please note that if you edit the SQL query and go back to the form, a message appears warning you that all changes will be lost. Click on Clear to accept this or click on Cancel to continue editing:
Once you click on Create, the tileset creation process status can be followed from a new dialogue box that appears at the top right corner of the screen. There are three possible status: creating tileset, tileset created successfully or tileset creation error. When an error occurs, you can click on Read more to get more information about the error. You can also click on Clear to clear the list when the processes have finished.
