Creating a connection

To create a new connection follow these steps:

  1. If you already have existing connections, click the New connection button. If you haven’t created any connections yet, follow step 2.
  2. Select your data warehouse: BigQuery, PostgreSQL, Redshift, Snowflake, etc.
  3. Click the Setup connection button, or the Connect using a service account button if you are connecting to BigQuery.
  4. Enter the connection parameters and credentials. You need to enter the connection parameters such as the server, username, password, or provide a service account, depending on the type of connector.

The following screen shows the connection setup options for Google Cloud BigQuery:

Connection setup with BigQuery

When you create a connection, it’s always private by default.

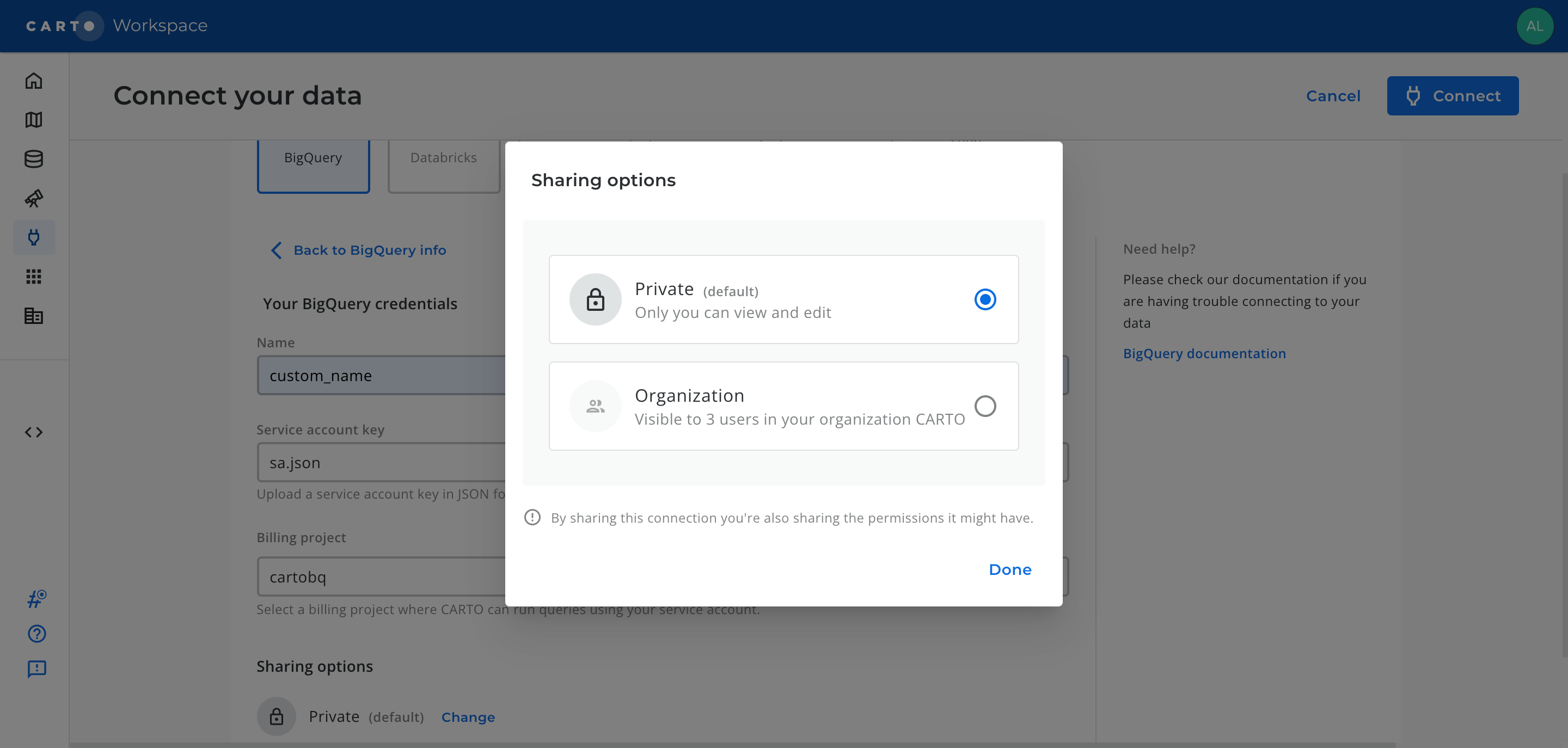

To be able to share a connection, go to Sharing options and click on Change. A new dialog screen will open allowing you to select who you want to share your connection with:

Sharing options private

Here you’ll find two different sharing options:

  • Private: Only you can view and edit it.
  • Organization: The connection will be visible and available to all users in your organization.

After you have provided the connection parameters, click Connect. Then you will see the list of your current connections:

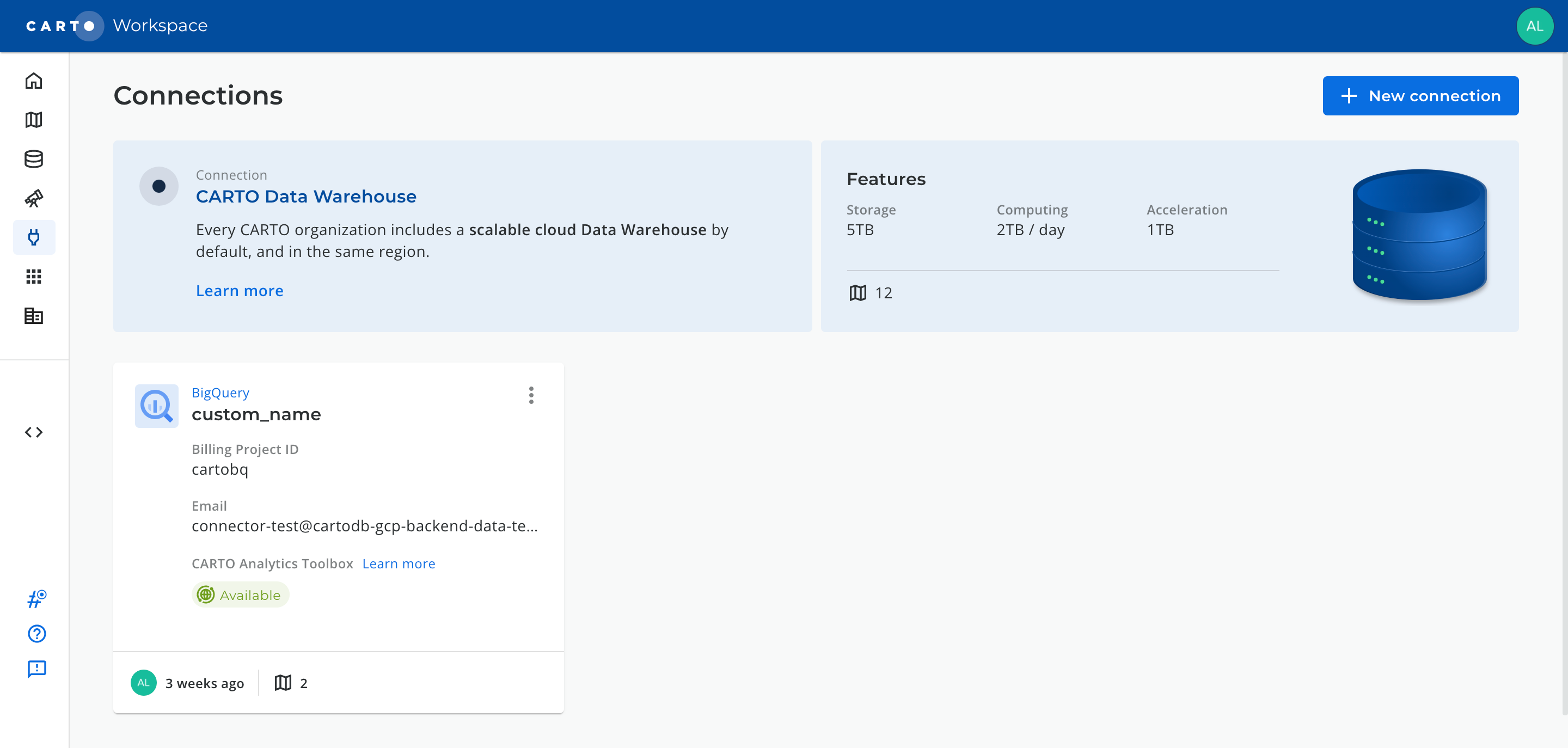

Successful connection

Once your connection is created, you can create maps using datasets from your data warehouse (navigating to the Data Explorer ).

In the next sections we show how to configure connections to the supported cloud data wharehouses.

Connection to BigQuery

CARTO uses access credentials to connect to BigQuery in order to run queries on your behalf. You can use features of CARTO directly by using the BigQuery console through the CARTO Analytics Toolbox, or you can use the CARTO Workspace to launch different processes, like tileset generation.

There are two ways to set up a connection to Google BigQuery:

  • Service Account: these are JSON credentials generated in Google Cloud Console, and are usually granted specific permissions to certain projects or datasets.
  • Sign in with Google: connect your own Google account and use the Google BigQuery projects that you already have access to.

When you access BigQuery through Google Cloud Service Account, the billing account associated with the selected billing project will be charged. Unless you have a flat-rate pricing agreement with Google, we recommend you configure specific limits in BigQuery to avoid any unexpected charges.

When you select the BigQuery connector in the New connection dialog, you will see the following page:

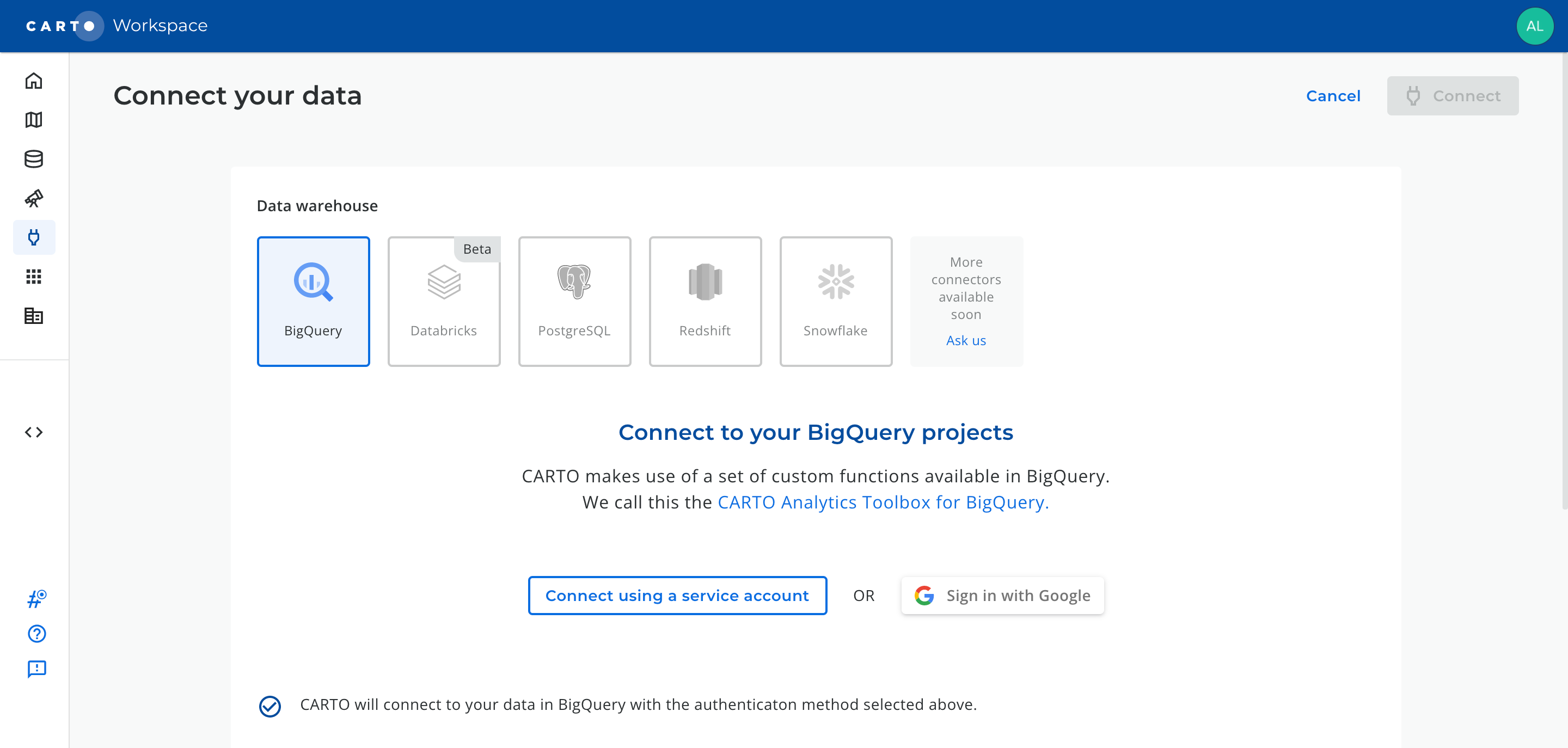

BigQuery Connection overview

Click the Connect using a service account button. You will see the form where you need to provide your connection parameters:

  • Name for your connection: You can register different connections with the BigQuery connector. You can use the name to identify the different connections.
  • Service account key file in JSON format. Please read the following instructions to create a service account and a service account key file. We will use this service account to list tilesets, visualize them privately, and grant publishing permissions. Be sure that the service account has BigQuery Data Owner (bigquery.dataOwner) and BigQuery Job User (bigquery.jobUser). Read our documentation if you want to learn about the specific permissions CARTO requires.
  • Billing project: having entered the previous parameters, a selector for choosing the billing project will be enabled, enabling CARTO to run queries using your service account.

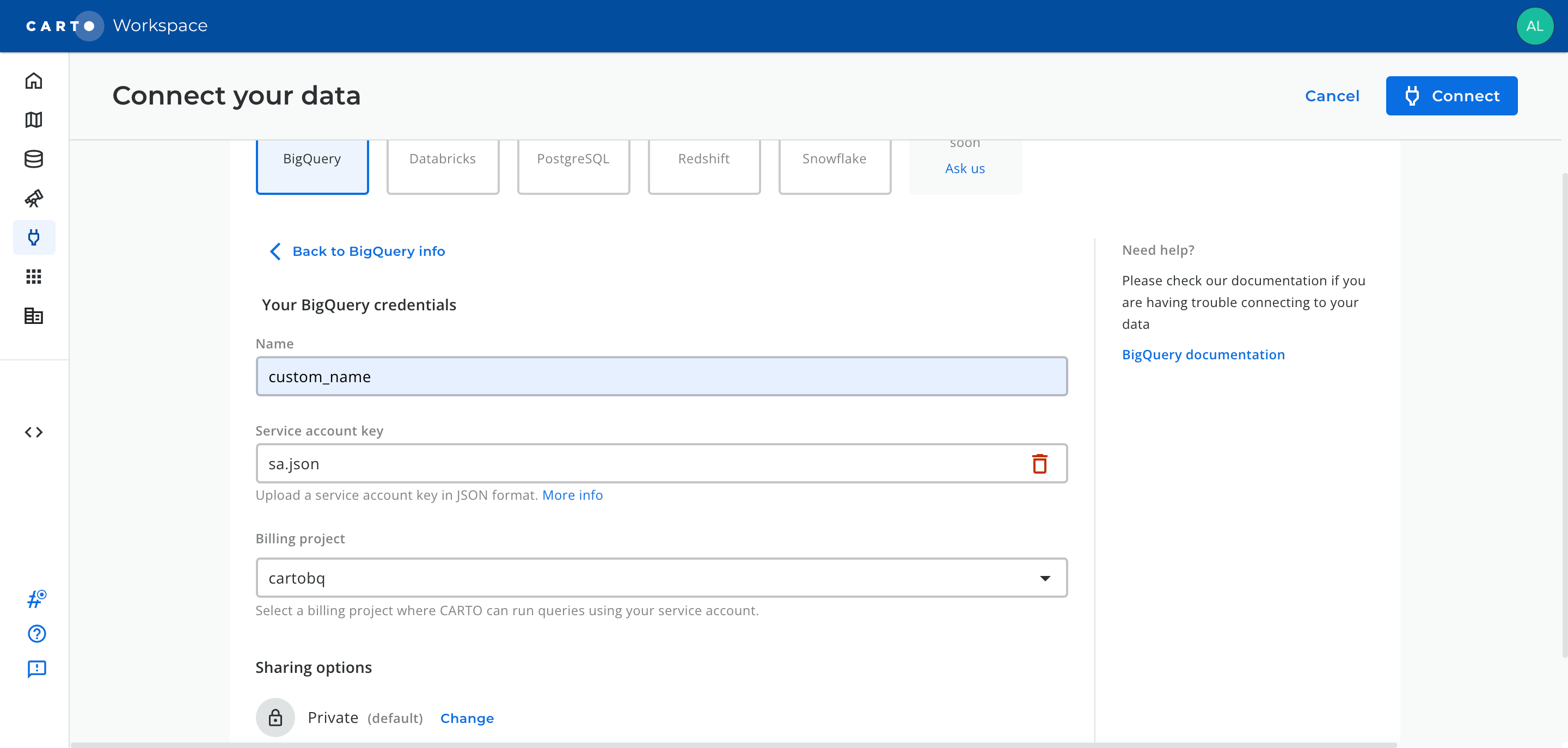

BigQuery connection parameters

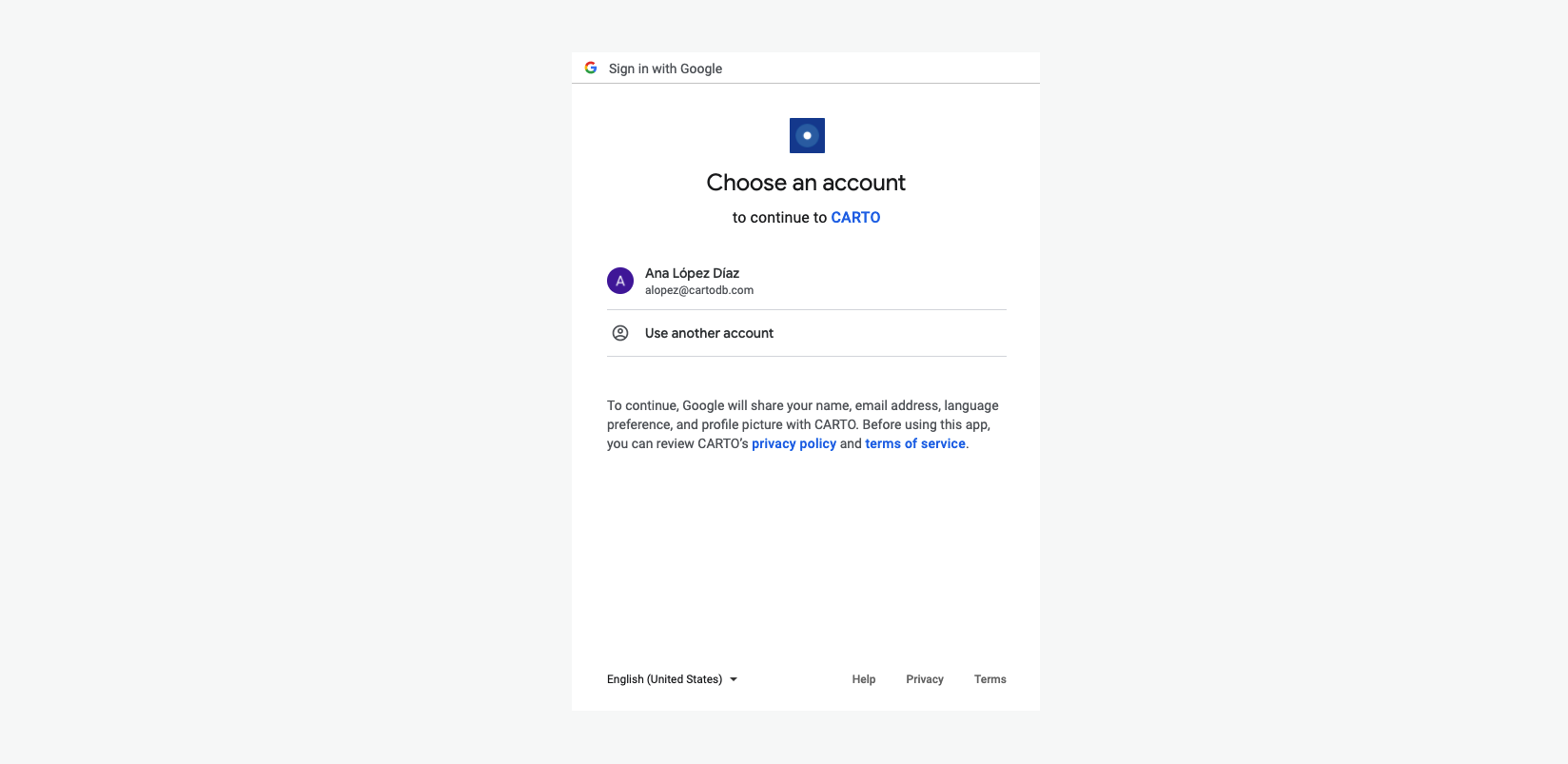

To connect using “Sign in with Google” simply click the Sign in with Google button. This will open a Google login modal that will request the necessary scopes for CARTO to connect to your BigQuery. You can connect with your previous account or use a new one.

BigQuery oauth

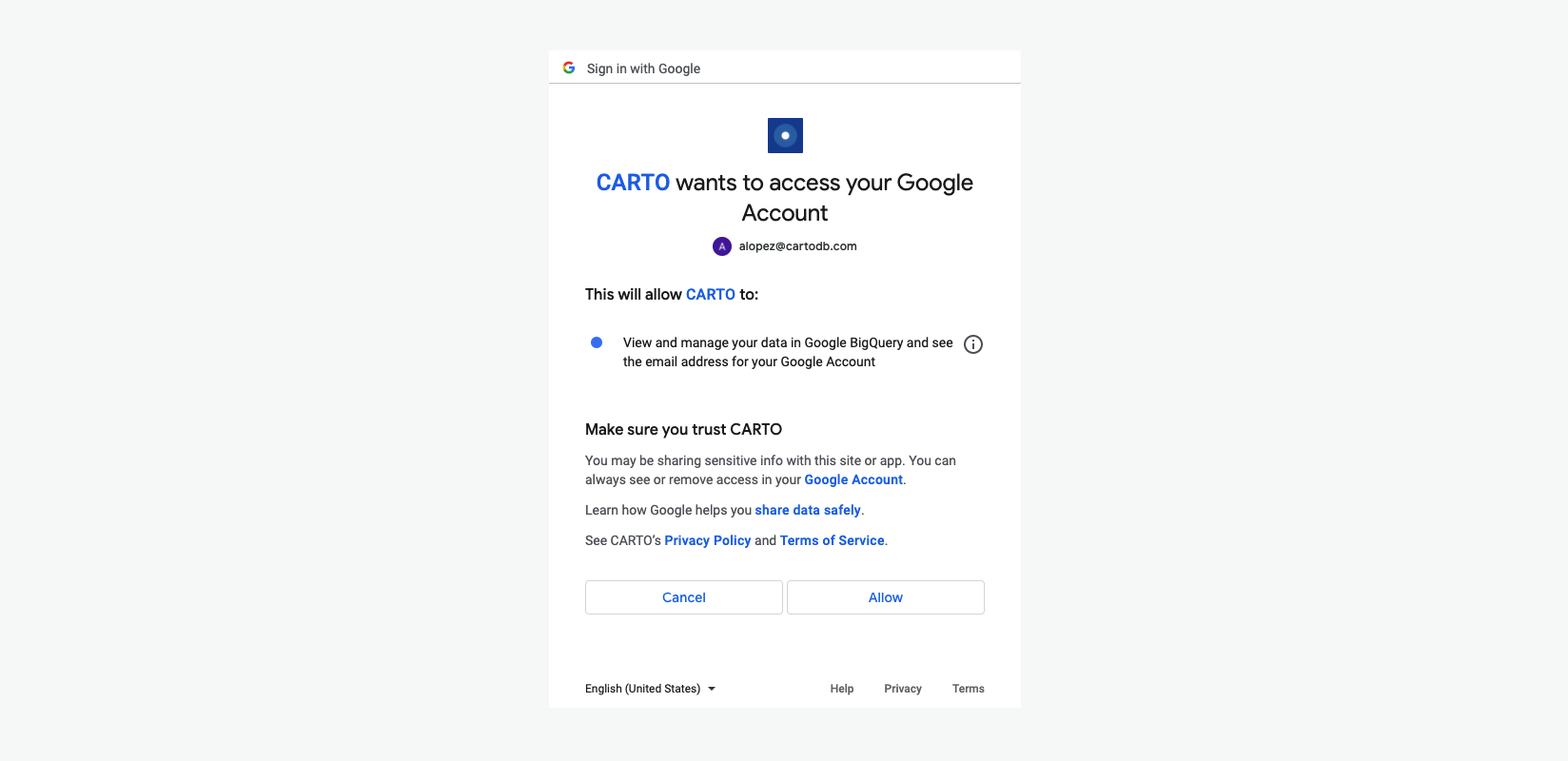

Once you have selected an account, a new dialog will appear allowing you to confirm that you trust CARTO and you give it necessary permissions. Click on Allow button to confirm and be authenticated directly using your google credentials or click Cancel if you don’t want to continue.

BigQuery oauth

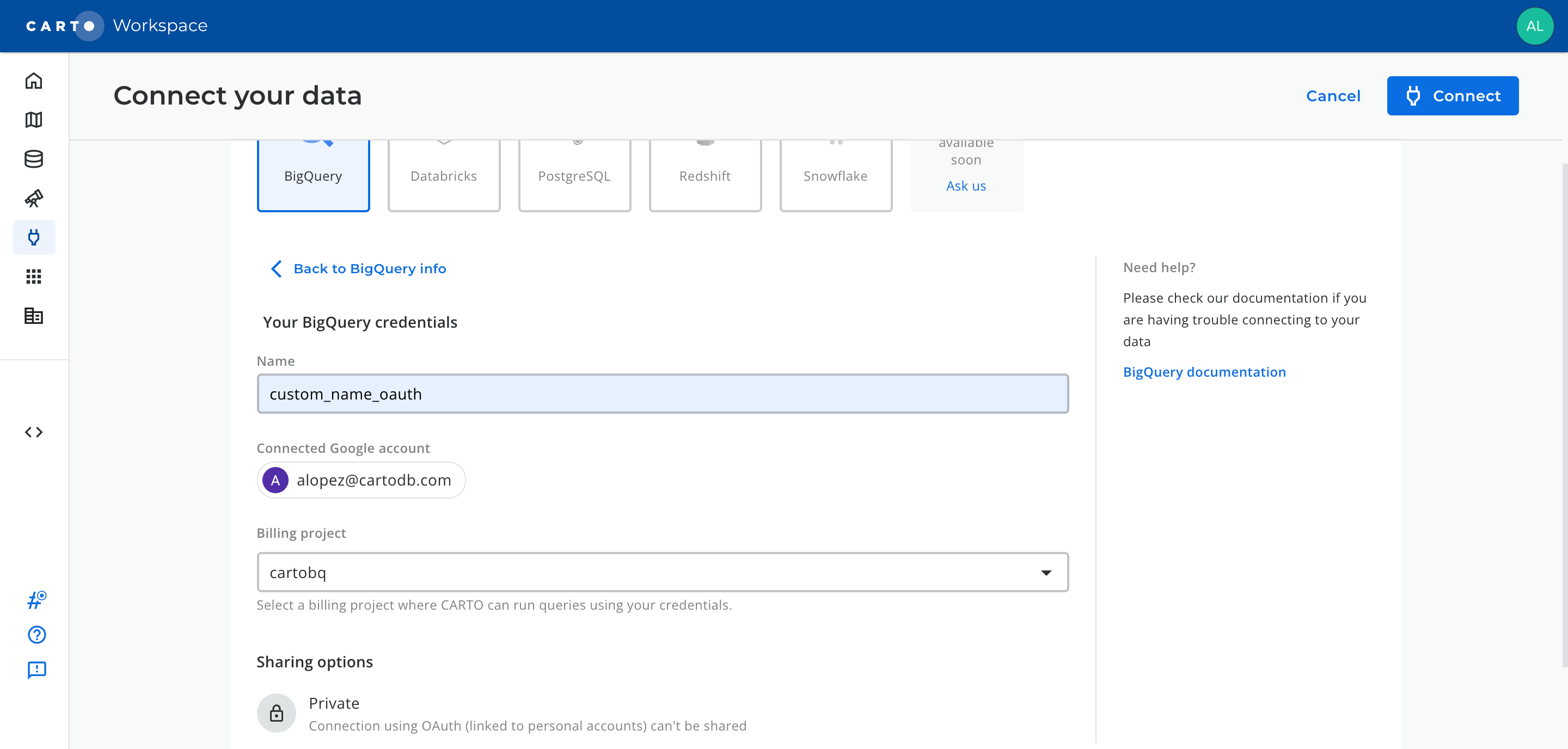

After allowing CARTO to access your Google Account, you will see the form where you need to provide your connection parameters:

  • Name for your connection: You can register different connections with the BigQuery connector. You can use the name to identify the different connections.
  • Billing project: having entered the previous parameters, a selector for choosing the billing project will be enabled, enabling CARTO to run queries using your service account.

BigQuery connection parameters

Once you have entered the parameters, you can click the Connect button. CARTO will try to connect to your BigQuery server. If everything is OK, your new connection will be registered.

Connection to PostgreSQL

You can use CARTO with your data in a PostgreSQL-compatible database, including Google Cloud SQL, Amazon Aurora & RDS, and Azure Database for PostgreSQL.

CARTO supports the following PostgreSQL and PostGIS versions:

  • PostgreSQL 12 and higher
  • PostGIS 2.4 and higher

If you want to create a connection to your PostgreSQL server, you need to select the PostgreSQL connector in the New connection dialog. After you select the connector click on the Setup connection button.

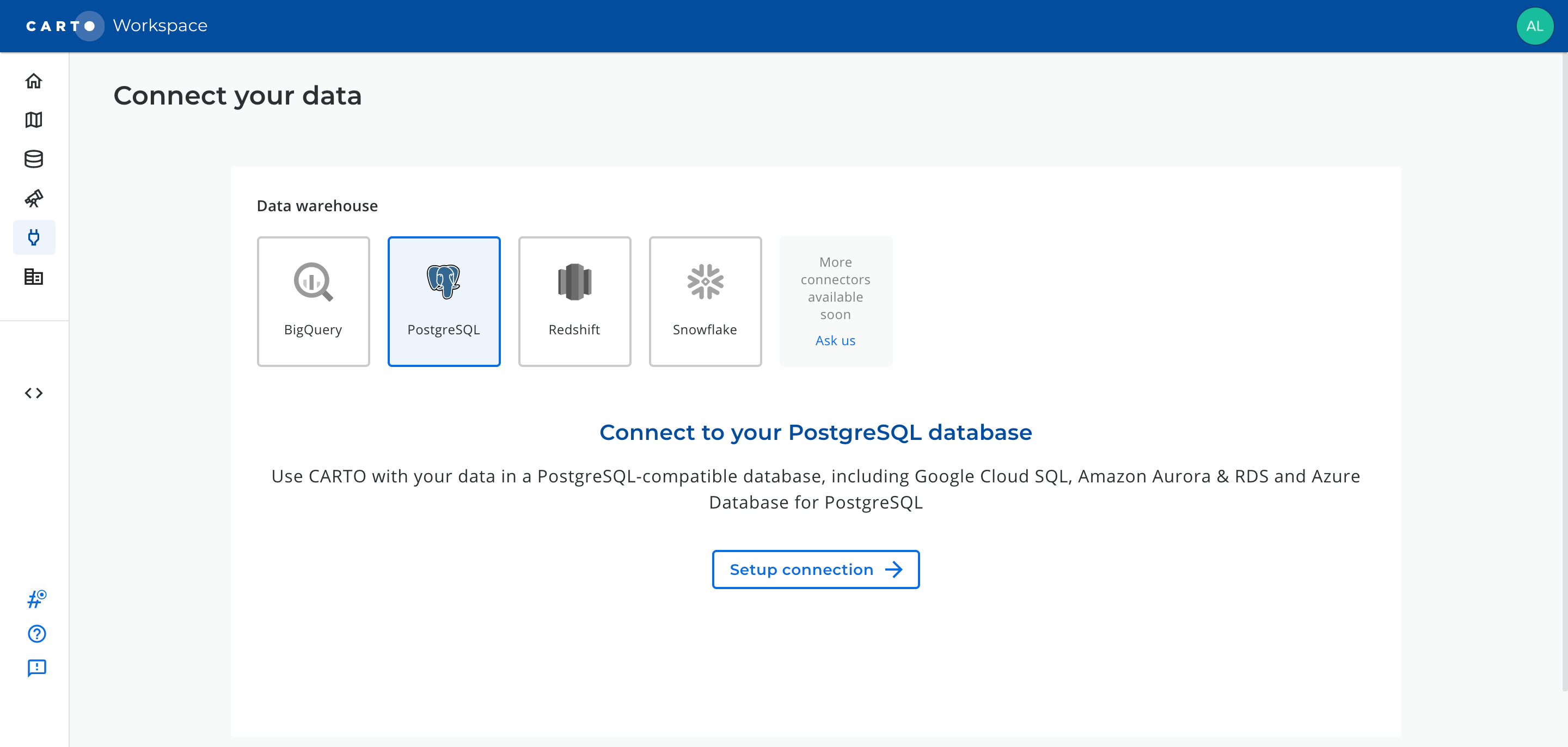

Connection setup with PostgreSQL

These are the parameters you need to provide:

  • Name for your connection: You can register different connections with the PostgreSQL connector. You can use the name to identify the connections.
  • Server: DNS name or IP address for your PostgreSQL server.
  • Username: Name of the user account.
  • Password: Password for the user account.
  • Database: Database your connection will use.
  • Port: TCP port where your server is listening for connections.

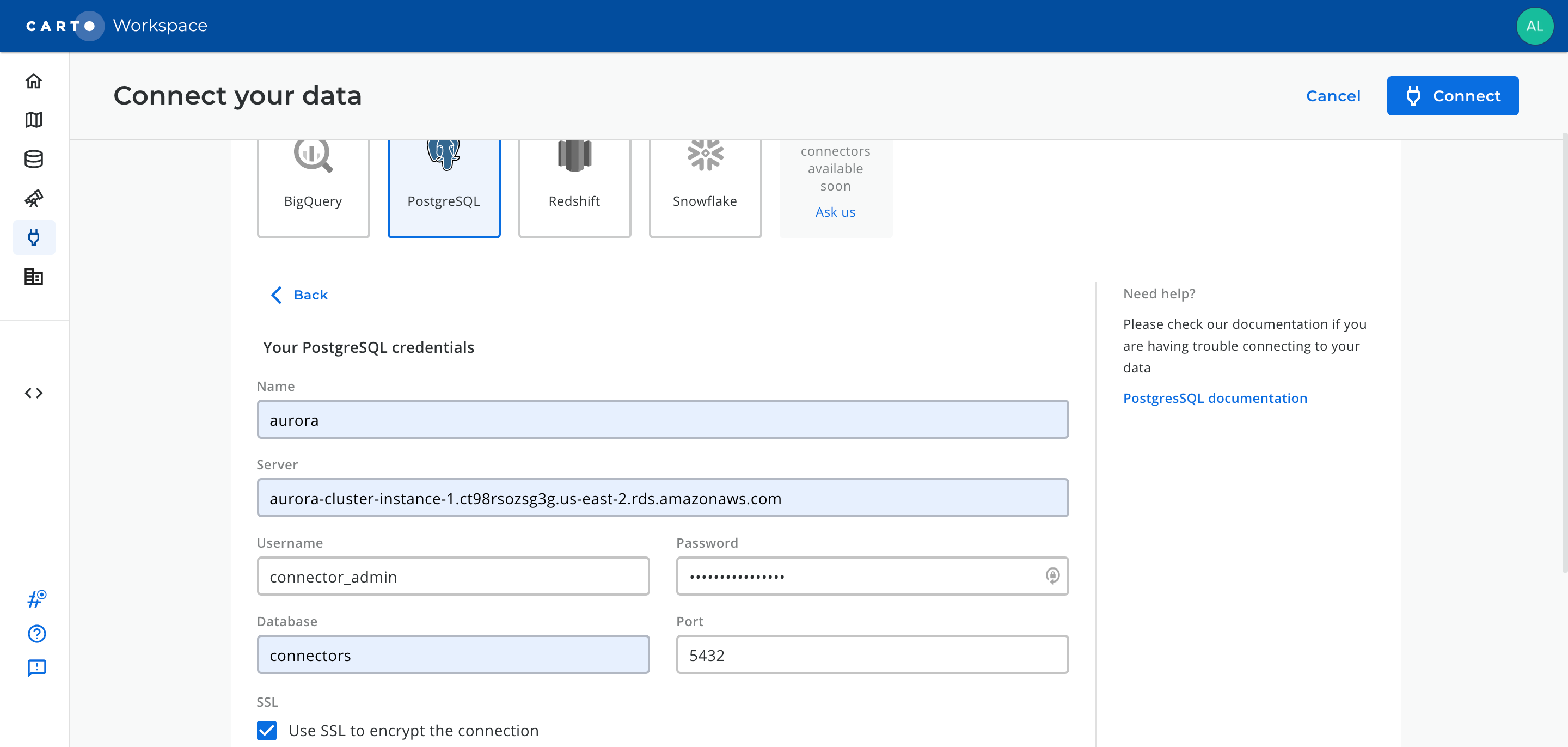

Connection parameters with PostgreSQL

Once you have entered the parameters, you can click the Connect button. CARTO will try to connect to your PostgreSQL server. If everything is OK, your new connection will be registered.

Connection to Amazon Redshift

You can use CARTO with your data in an Amazon Redshift data warehouse.

If you want to create a connection to your Redshift data warehouse, you need to select the Redshift connector in the New connection dialog. After you select the connector click the Setup connection button.

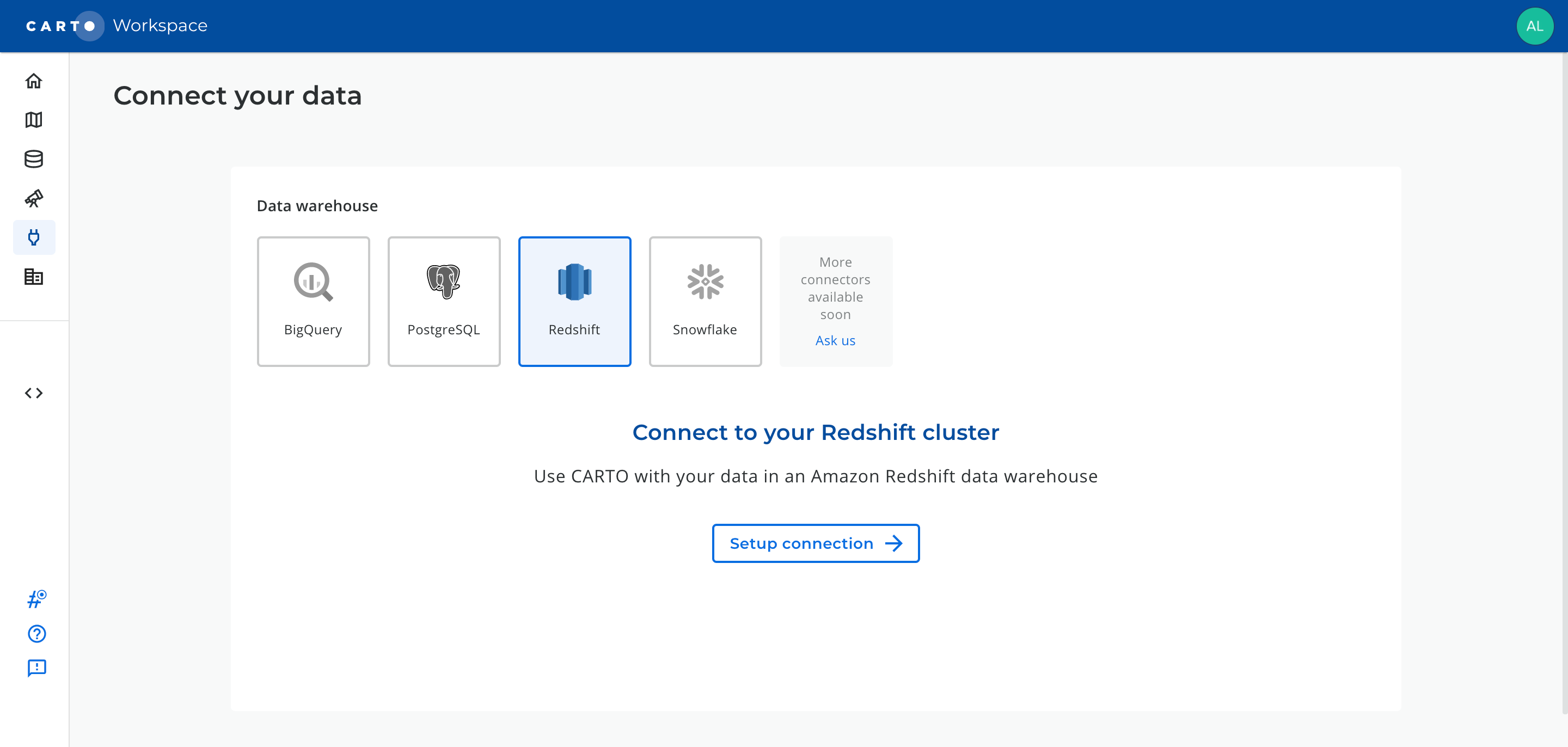

Connection setup with Redshift

These are the parameters you need to provide:

  • Name for your connection: You can register different connections with the Redshift connector. You can use the name to identify the connections.
  • Cluster: DNS name or IP address for your Redshift cluster.
  • Username: Name of the user account.
  • Password: Password for the user account.
  • Database: Database your connection will use.
  • Port: TCP port where your cluster is listening for connections.

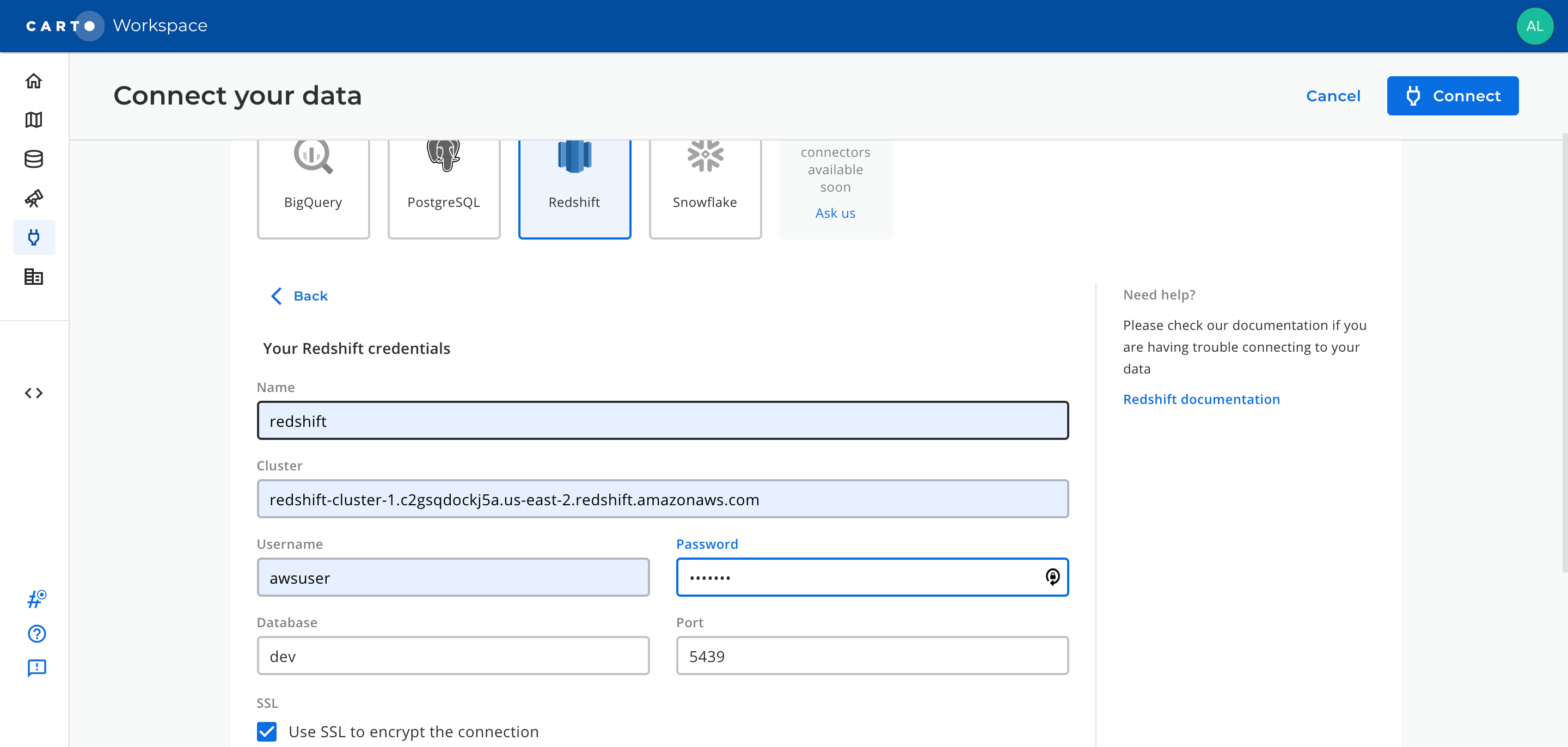

Connection parameters with Redshift

Once you have entered the parameters, you can click the Connect button. CARTO will try to connect to your Redshift cluster. If everything is OK, your new connection will be registered.

Connection to Snowflake

You can use CARTO with your data in a Snowflake data warehouse.

If you want to create a connection to your Snowflake data warehouse, you need to select the Snowflake connector in the New connection dialog. After you select the connector click the Setup connection button.

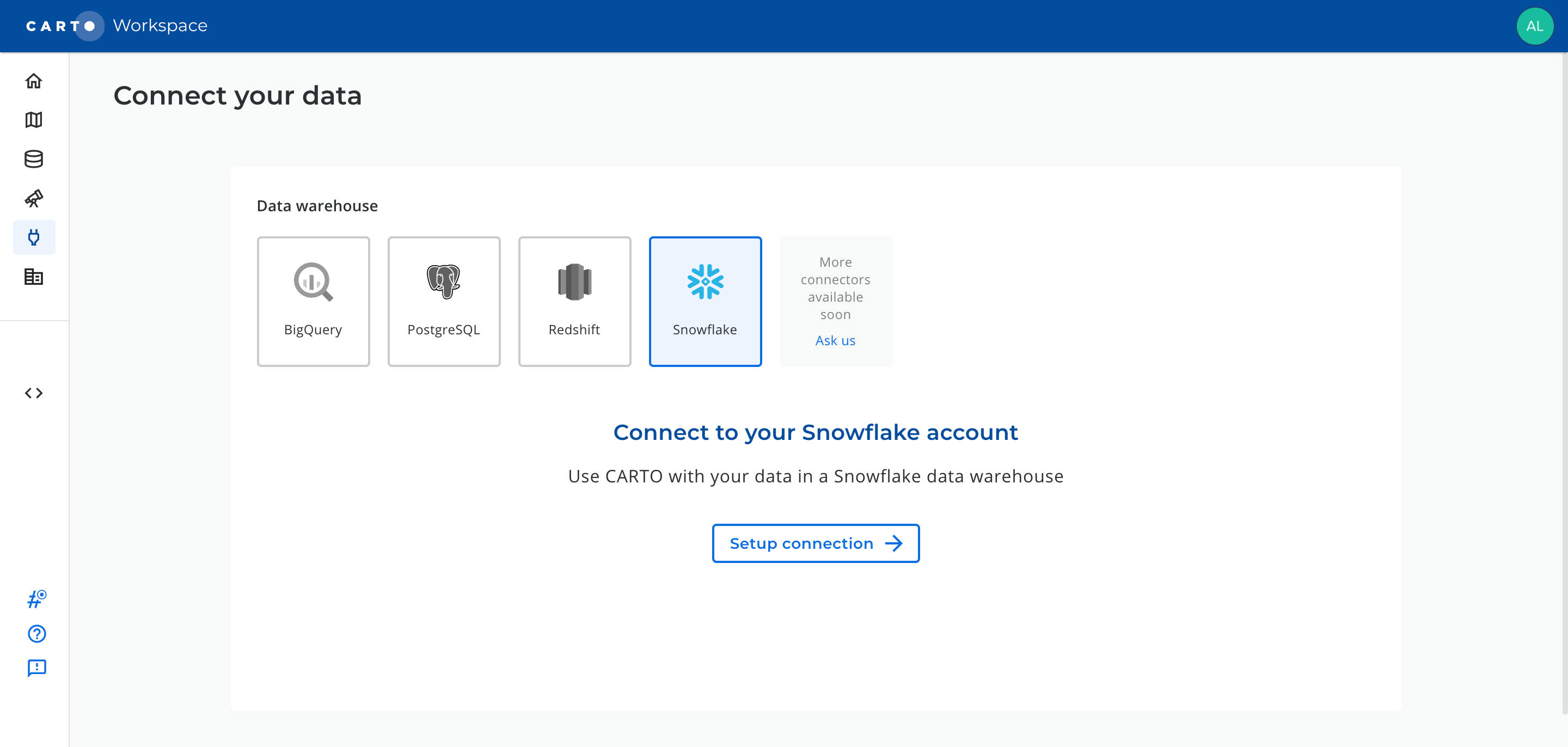

Connection setup with Snowflake

These are the parameters you need to provide:

  • Name for your connection: You can register different connections with the Snowflake connector. You can use the name to identify the connections.
  • Database: Database your connection will use.
  • Username: Name of the user account.
  • Password: Password for the user account.
  • Account: Hostname for your account in the following format: <account_name>.snowflakecomputing.com.
  • Warehouse: Default warehouse that will run your queries. This parameter is optional.

Currently we only support username/password authentication using the internal Snowflake authenticator. We don’t support federated authentication/SSO, OAuth, or SAML 2.0 compliant identity providers. We will add support to this other authentication methods in the months to come.

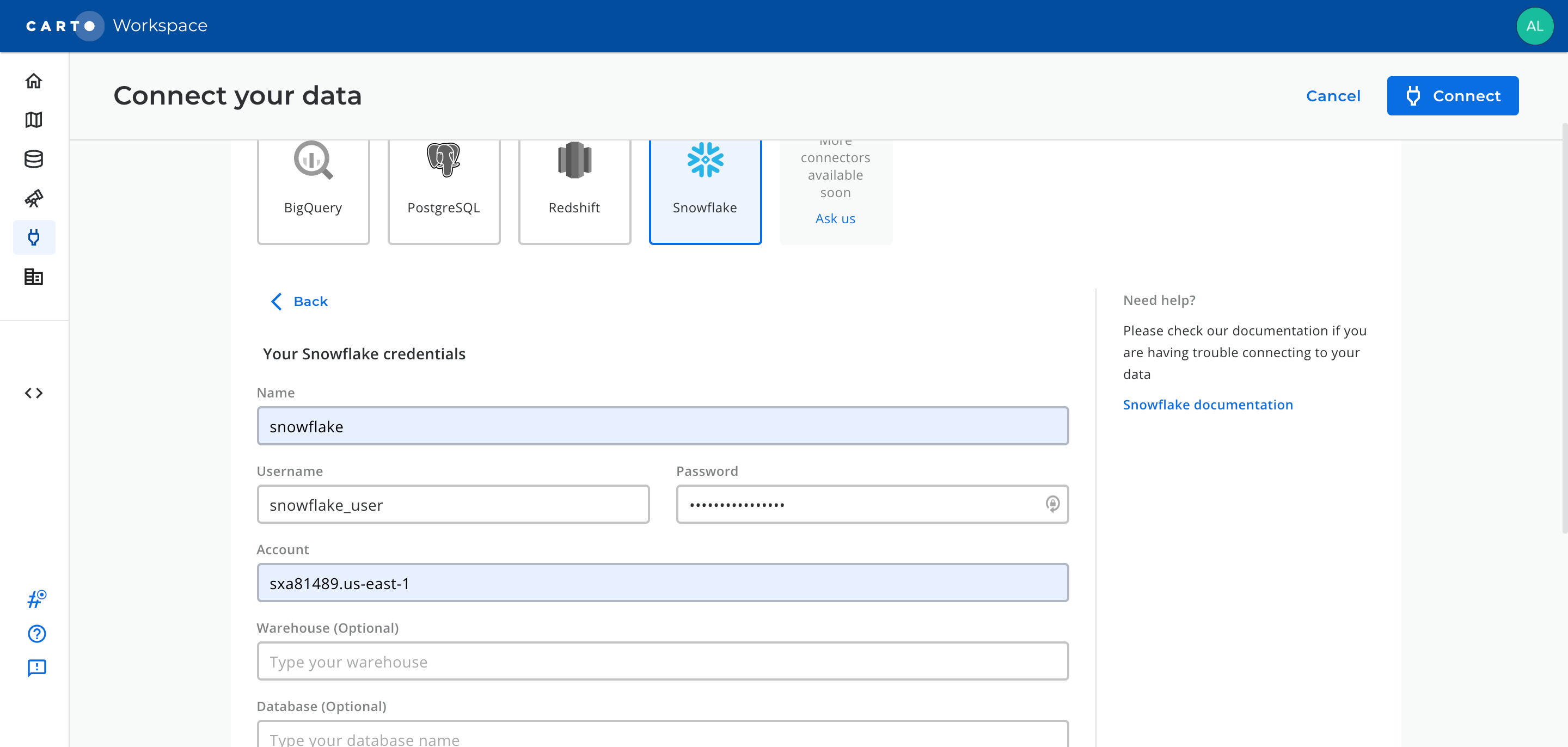

Connection parameters with Snowflake

Once you have entered the parameters, you can click the Connect button. CARTO will try to connect to your Snowflake account. If everything is OK, your new connection will be registered.

Connection to Databricks

CARTO can connect to Databricks to push down SQL queries that will be executed in your Databricks SQL Warehouse or Databricks cluster.

If you want to create a connection to Databricks, you need to select the Databricks connector in the New connection dialog. After you select the connector click the Setup connection button.

Connection setup with Databricks

These are the parameters you need to provide:

  • Name: A name to identify this connection across different CARTO interfaces.
  • Server: Server host URL of your SQL Warehouse or cluster.
  • HTTP Path: HTTP Path of your SQL Warehouse or cluster.
  • Port: TCP port that will be used to create the connection.
  • Token: A Databricks user token. The connection will inherit permission and access privileges of the user that generates the token.
  • Catalog: This parameter is needed for connections to SQL Warehouses. Select a Catalog that will be available through this connection.

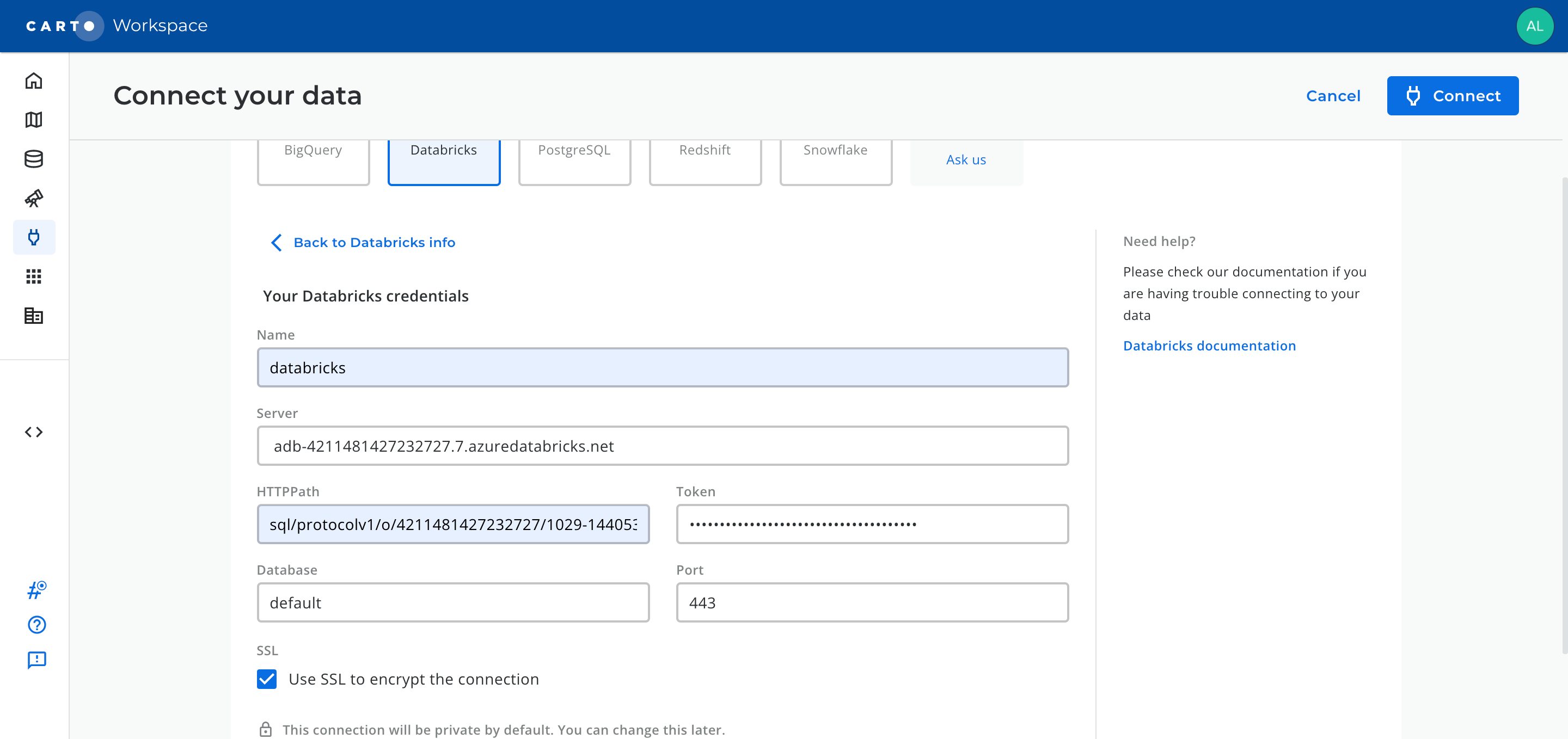

Connection setup with Databricks

Once you have entered the parameters, you can click the Connect button. CARTO will try to connect to Databricks, and if everything is OK, your new connection will be registered.

IP Whitelisting

CARTO will connect to your databases using a set of static IPs for each region. These static IPs can be whitelisted in your security setups as needed. Here’s the list of static IPs, with an endpoint that you can use to validate or retrieve them.

🇺🇸 us-east1
  • 35.185.63.239
  • 104.196.59.4
  • 34.73.63.7
  • 34.139.239.104

Get this list via API.

🇪🇺 europe-west1
  • 34.79.53.57
  • 35.195.132.75
  • 34.78.167.2
  • 35.187.123.190

Get this list via API.

🇯🇵 asia-northeast1
  • 34.85.15.12
  • 35.200.23.186

Get this list via API.

🇦🇺 australia-southeast1
  • 34.151.87.148
  • 35.201.15.104

Get this list via API.
